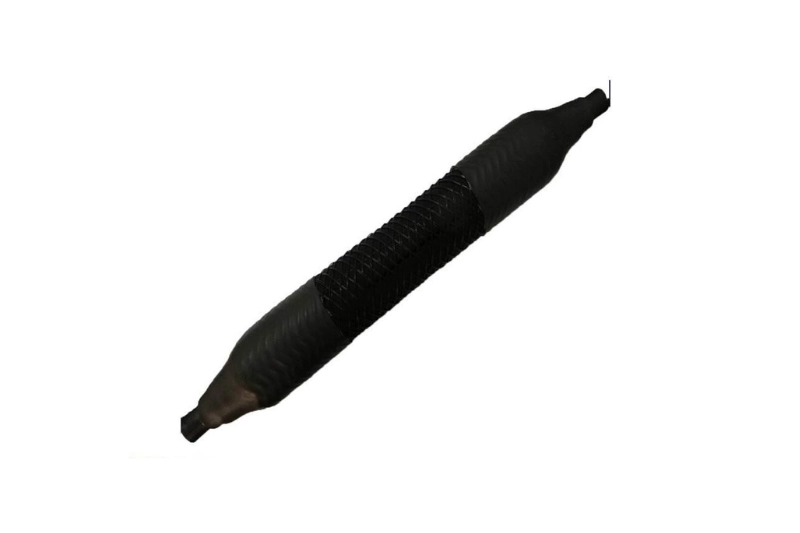

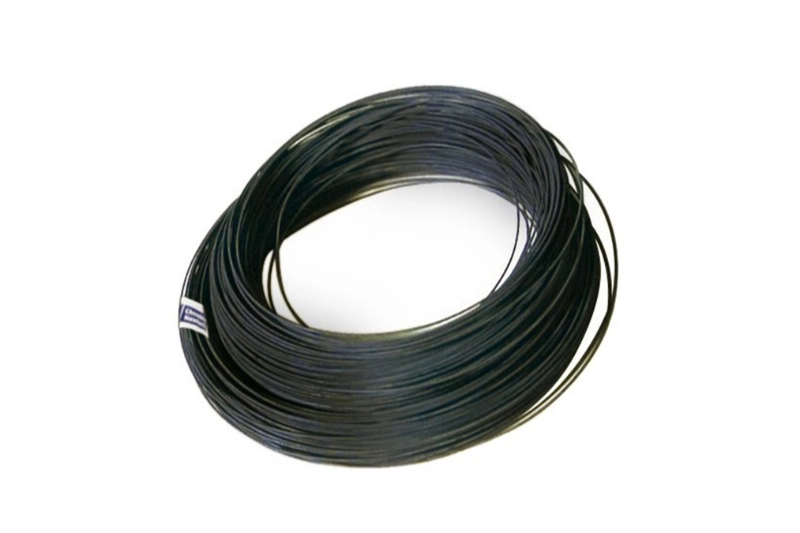

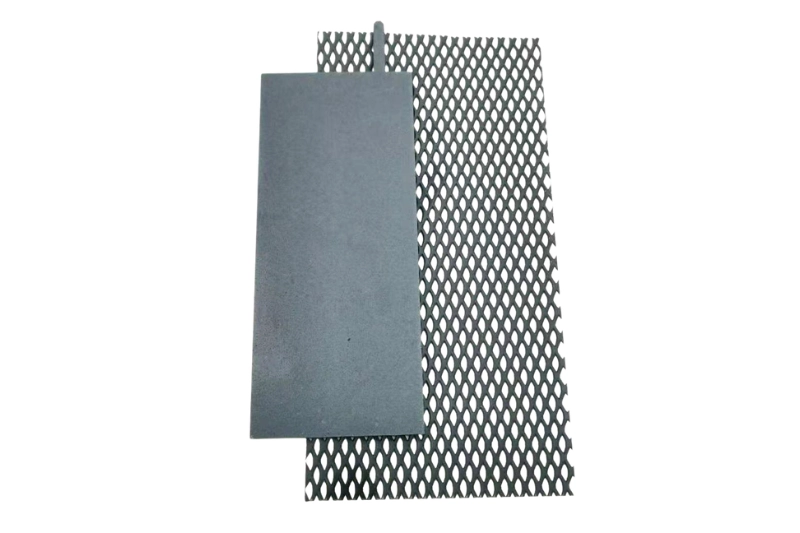

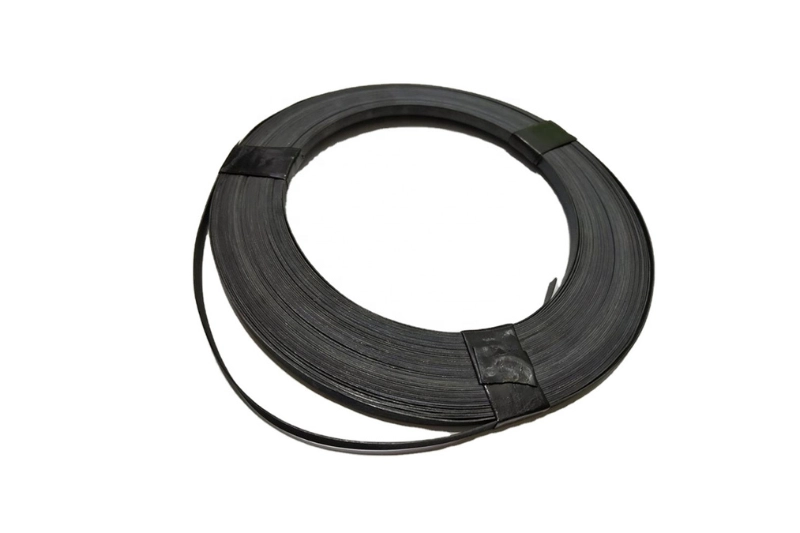

mmo anode feature
mixed metal oxide anodes are made of titanium substrate and sintering of precious metal oxides such as ruthenium, iridium, platinum, tantalum, etc., this design can extend the service life of pipelines and storage tanks, thereby saving a lot of maintenance and replacement costs. In addition, e can customize complex shapes of MMO titanium anodes according to customer space needs.
highlight
- Flexible, customizable design
- Enhanced conductivity design
- Dimensional stable design
- Low-cost and energy-saving design
- High current density and long life design
- Long-term stable operation design
- Multiple anode configuration design
- Light weight and easy to operate design
- Current design (mA/m2): 17/34/68
- Corrosion-resistant design in strong acid solution
WHAT WE OFFER
Explore Our Comprehensive MMO Anode
Explore our comprehensive range of MMO anode products with high performance, reliability, and long life, making it your go-to choice for external current cathodic protection systems for marine applications, pipelines, tanks, tanks, and other industrial applications.Extend the life of your metal structures and ensure the safe operation of your industrial facilities.
POPULAR
MMO Linear Anode (Solid Titanium MMO Wire)
MMO linear anode (Solid titanium MMO wire) is mainly used for cathodic protection at the bottom of pipelines and storage tanks due to its easy installation and operation and low procurement cost.
POPULAR
MMO Linear Anode (Copper Core Titanium MMO Wire)
MMO linear anode (copper-core titanium MMO wire) is mainly used for cathodic protection in pipelines and petrochemical vessels because it can maintain the current over a long distance and does not reduce the voltage longitudinally.
POPULAR
MMO Canister Anode
The MMO Canister Anode is primarily utilized for external cathodic protection for pipelines and tanks, soil environment, and deep well due to its increased current output.
POPULAR
MMO mesh ribbon anode
MMO mesh ribbon anode is developed for cathodic protection of reinforced concrete structures, internal protection of water tanks and pipes, and condensers due to its long service time, uniform current distribution, low resistance, and low consumption，Internal protection of industrial equipment, electrochemical industry, wells and other aqueous environments, etc.
POPULAR
Mixed Metal oxide MMO anode
Hybrid oxide MMO anodes have been developed for electroplating, electrolytic cleaning, electrodeposition, seawater chlorination, and water and wastewater treatment due to their energy-saving potential and stable performance.
POPULAR
MMO tubular anode string
The MMO tubular anode string is used in deep wells and soil environmental protection due to its high conductivity and low wear rate.
POPULAR
mmo wire anode
The MMO line anode is reliably engineered for brackish water, freshwater, horizontal subbed, seawater, shallow subbed, soil, coke backfill and concrete environments, and high chlorine environments due to its extremely low loss rate
POPULAR
mmo tubular anode
MMO tubular anodes are developed for tank anodes, under above-ground storage tanks and in congested areas, underground storage tanks, water storage tanks, because of their stable titanium matrix, longer life, low consumption rate, and better conductivity.Horizontal grounding bed protection
POPULAR
marine ICCP systems MMO linear bar anode
Used in marine ICCP systems MMO linear bar anodes have been developed for use in ships due to their high surface area output power.
POPULAR
ship ICCP systems MMO disc anode (round)
For ship ICCP systems The MMO disc anode (round) is used for hull cathodic protection because of its 5-8 times larger protection area than the traditional anode under the same size.
POPULAR
ship ICCP systems MMO disc anode (oval)
For ship ICCP systems The MMO disc anode (oval) is used for hull cathodic protection due to its stable shape and long life.
POPULAR
Mixed Metal Oxides (MMOs) Coated discrete titanium mesh anode
Mixed Metal Oxides (MMOs) Coated discrete titanium mesh anodes have been developed for medium-thick reinforced concrete components in relatively compact structures such as beams, columns or piles in tidal/splash zones due to their cost-effectiveness.
design
custom mmo coated titanium anodes manufacturing on demand
Xuboti’s ability to customize Mixed Metal Oxide anodes sets us apart from our peers. Xubo Titanium can customize various shapes (such as sheets, mesh, wires, rods, strips, plates, tubes, felt or three-dimensional structures), size (a few square centimeters to several square meters), precious metal content (6~40g/m2), according to customer needs,and the needs of 2~75 years of service life, and even the type of stretch mesh can be customized to meet the application needs of your pipelines, oil wells, plants and other infrastructure assets from different angles. And we can help you complete the delivery from design to sample within 7 days.
types & application
mmo coated titanium anodes types and applications
mmo titanium electrodes, also known as DSA electrodes, are electrode materials with titanium as the base material and covered with precious metal oxides. With its excellent energy-saving potential, stable high conductivity, improved production efficiency and longer service life,Titanium anodes are widely used in many industrial fields. The following are its main classifications and application scenarios.
RuO2 series titaium electrode
The main coating component of RuO2 series titaium electrode is ruthenium iridium mixed metal oxide, and the ruthenium iridium coating is low price, suitable for chlorine-containing environments, helping your large assets resist oxidation reactions and chloride ion erosion caused by the electrolysis process, and extending the service life of the asset.
Usage: Buried, seawater, marine applications
Iridium series titanium anode
The main coating component of Iridium series titanium anode is iridium tantalum mixed with metal oxides, and the price of iridium tantalum is slightly higher. Excellent corrosion resistance in acidic media. It is not consumed during the generation of cathodic protection current, so it requires little maintenance. Significantly reduce replacement costs and downtime maintenance.
Uses: Pipe piles and sheet piles, vertical ground beds, deep well anode ground beds, horizontal directional drilling (HDD) applications, under ASTs with minimal headroom.
Platinum series titanium anodes
The main components of Platinum series titanium anodes coating are excellent performance in acidic electrolyte, alkaline electrolyte and cyanide electrolyte, and the life of the platinated titanium anode is 2 to 3 times that of standard platinum anode, which can help you replace pure platinum anode in electroplating and save procurement costs.
Usage: water electrolysis, electroplating, electronics, semiconductors, electrodialysis
advantage
Advantages of mixed metal oxide anode
As a professional supplier and manufacturer of mixed metal oxide anodes (MMOs), Xubo Titanium Industry has comprehensively summarized the advantages of MMOs to help you accurately select the right MMO anode.
300% wider than the traditional graphite anode tolerance range, which can help you avoid downtime and maintenance caused by the 3-year failure of traditional anode, and reduce maintenance costs.
compared with 20 years of high-silicon cast iron anode, the number of replacements is 0, which helps you reduce the cost of the whole cycle by 67%.
The current efficiency is 95%, and the output of the same current can help you reduce the electricity bill from the original 15000/year to 6000/year.
help you shorten the installation period of large-scale projects and generate income in advance.
WHY CHOOSE US
Let's start your project to be realize
All of Xubo Titanium’s MMO titanium anodes are made of corrosion-resistant and recoatable titanium substrates, which have stable performance, strong mechanical strength, and will not be consumed during the process of generating cathodic protection current, protecting your tanks, bridges and industrial equipment for longer service.
Most selection
Xubo Titanium's MMO titanium anodes are available in more than 20 patented coating formulations, with complex shapes and sizes available. There's something for everyone.
The price is very competitive
This product is shipped directly from the factory and the price is wholesale price.
Trusted and tested quality
When each order is shipped, customers can get a warranty certificate, EN10204 3.1, and EN10204 3.2 test report.
Long-lasting guarantees
The warranty period is guaranteed, the industrial electrochemical warranty period is 2~20 years, and the cathodic protection warranty period is 20~75 years.
For more details, request a quote
data table
MMO Anode Specifications & Parameters
As a professional MMO titanium anode manufacturer, Xubo provides customizable specifications to meet your specific cathodic protection (ICCP) and electrolysis requirements. Below are our standard MMO anode parameters:”
| Parameter | Specification / Value |
| Substrate Material | Pure Titanium, ASTM B265 / B338 (Grade 1 or Grade 2) |
| Coating Material | Mixed Metal Oxide (IrO₂, RuO₂, Ta₂O₅, TiO₂) or Platinum |
| Coating Types | Iridium-Tantalum (Ir-Ta), Ruthenium-Iridium (Ru-Ir), Ru-Ir-Ti |
| Coating Thickness | 8 – 12 µm (Customizable based on application & design life) |
| Available Shapes | Tubular, Ribbon, Mesh, Plate/Sheet, Rod, Wire |
| Design Life | 10 to 20+ Years (Depending on operating current density and environment) |
| Ph Range | 1 – 12 |
| Customization | Supported (Dimensions, coating weight, and cable connections) |
📄 Download Technical Datasheet (PDF)
data table
Applicable environments and current densities of different coating systems
Choosing the right coating is critical for the anode’s lifespan. We offer different MMO coating systems optimized for specific environments (Chlorine Evolution vs. Oxygen Evolution):
| Coating System | Primary Reaction | Applicable Environments | Typical Current Density |
| Ruthenium-Iridium (Ru-Ir) | Chlorine Evolution | Seawater, Brackish Water, Chlor-Alkali Industry, Pool disinfection | Max 500 – 1000 A/m² (in Seawater) |
| Iridium-Tantalum (Ir-Ta) | Oxygen Evolution | Soil, Freshwater, Concrete, Copper foil production, Electroplating | 50 – 100 A/m² (Soil) <br> Up to 2500 A/m² (Plating) |
| Platinum (Pt Plated) | Both | Hard Chrome Plating, Water Ionizers, Specialized ICCP | Customizable |
Note: The actual current density and design life depend on the specific electrolyte concentration and operating temperature. Contact our engineers for a precise calculation.
CLIENT SAY
Trusted around the world FOR AWESOME PROJECT
Over the past 20 years, Xubo Titanium has helped many companies achieve steady sales growth. You could be next～
Frequently Asked Questions
A: Of course, ruthenium and iridium coatings are suitable for high-chlorine environments, and iridium-tantalum coated electrodes are used in other environments.
A: We can provide customers with accelerated life test test report with the goods.
A: Yes, we only have GR1 pure titanium material, and the substrate test report is included when shipped.
A: Absolutely. Titanium mesh anode partition prefabricated + quick buckle to match the bottom of the tank,Ribbon anode The pre-bending radius ≥50mm is used to match the pipe winding, and the laser cut special-shaped anode sheet is used to match the narrow space.
A: It can be supplied with the goods.
A: Yes, to ensure that the connection point seal is resistant to long-term electrochemical corrosion, all overheads are made using this process.
A: Of course, our failure response clause: the technical team will be present within 48 hours after the anode failure.
A: MOQ MOQ 1 piece, some sizes are in stock. The customized construction period is 20~40 days. If the project is expedited, we can discuss the construction period.
