Electrowinning vs Electrorefining: 5 Key Differences (2024 Guide)

Struggling to choose between electrowinning and electrorefining for your metal processing needs? Feeling lost in the technical jargon?

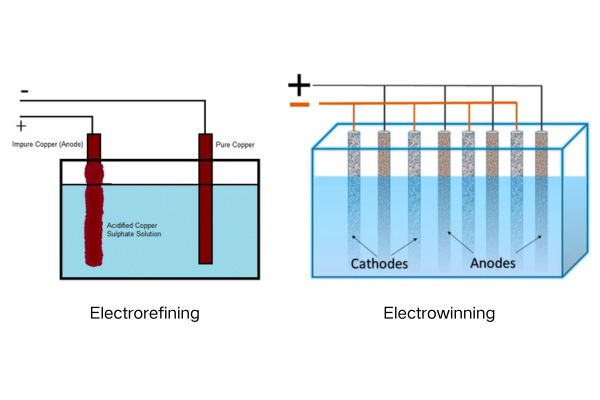

Electrowinning recovers metals from solution, while electrorefining purifies impure metals. Electrowinning is for low-concentration solutions; electrorefining is for impure metal anodes.

This guide breaks down the key differences, costs, environmental impacts, and future trends in 2024. Let’s dive in and clear up the confusion.

When should I choose electrowinning over electrorefining?

Are you starting a new project, like a mine, and wondering which technology fits best? You need to quickly figure out the right scope to save time and money, right?

Choose electrowinning for low-concentration solution¹s (like waste liquids). Choose electrorefining for impure metal anode²s (like crude copper).

Making the Right Choice: A Decision Tree

Think of it like this, use this simple guide:

• If your raw material is a low-concentration solution (mining waste, leachate) → Go for Electrowinning.
• If your raw material is an impure metal anode (crude copper, scrap) → Go for Electrorefining.

For example, I heard about a copper mine in Chile. They use electrowinning to get copper from a very weak 0.5g/L leachate. It costs them 30% less than old-school smelting.

Which process has lower operating costs³?

Concerned about long-term costs as a factory manager? You probably want a clear picture of things like energy use and how often you need to replace electrodes, correct?

Electrorefining has a lower initial equipment investment. But, electrowinning offers a better total cost when processing low-grade raw materials.

Breaking Down the Costs: Copper Production

Let’s look at the cost of producing copper as a good, solid example.

Cost item	Electrowinning	Electrorefining
Power consumption	2,500 kWh/ton copper	1,800 kWh/ton copper
Electrode loss	Titanium anode (5-year life)	Lead anode (replace every 2 years)
Raw material prep	Solution enrichment needed	Anode direct electrolysis

When refining copper, even small differences in energy use make a big impact.

How do their environmental impacts differ?

Are you working on making your company’s ESG report better? Needing a cleaner process that follows the rules?

Electrowinning produces acidic waste (pH<2) and acid mist. Electrorefining creates anode mud⁴ with heavy metals, requiring special disposal.

Pinpointing the Pollution Sources

Let’s get specific:

• Electrowinning: You get acidic waste liquid⁵ (pH less than 2) and acid mist. This means you need neutralization treatment and closed tanks.
• Electrorefining: You end up with anode mud⁴ (it’s got heavy metals like arsenic). This needs to go to special hazardous waste places.

I read that a gold mine in South Africa is using solar power for electrowinning. They’ve cut carbon emissions by over 40% (World Gold Council data). Impressive, right?

Which technology gives higher-purity metals?

Do you need super pure metals, like 99.99% copper, to make sure your electronic parts work perfectly?

Electrorefining can achieve higher purity levels⁶ (99.99%+) compared to electrowinning (typically up to 99.95%).

Understanding Purity Limits

Here is the truth:

Indicators	Electrowinning	Electrorefining
Max copper purity	99.95%	99.99%+
Impurity control	Depends on solution prep	Anode mud traps impurities

Electrorefining naturally filters out the bad stuff. It’s all in how the anode dissolves and the cathode selectively picks up the pure metal.

Will new technologies disrupt electrowinning/electrorefining by 2025?

Are you an investor or a tech decision-maker? Are you worried your current equipment might become obsolete soon?

While both technologies will continue to evolve, neither is expected to be completely disrupted by 2025. Incremental improvements are more likely.

Innovations on the Horizon (2024 and Beyond)

Here is what I found out:

1. Electrowinning⁷: People are looking at ionic liquid electrolytes⁸. This could help get more metal out of weak solutions.
2. Electrorefining⁹: AI is being used to adjust the current. This could cut down on anode mud by 20%.

A report from CRU says global electrorefining capacity will grow by 4.2% in 2024. Electrowinning, though, will jump 12% in the lithium battery recycling market.

Conclusion

Electrowinning and electrorefining both have a clear place in metal production. Your choice depends on your specific needs and priorities – purity, cost, and environmental impact¹⁰. The field is always developing, so staying informed is critical.

---
