High-Performance Titanium Anodes | MMO Coated & Platinized Electrodes for Industrial Electrolysis
Xubo Titanium is a titanium anode manufacturer and wholesaler in China. We are committed to providing you with efficient and durable mixed metal oxide anode, lead dioxide anode, titanium anode basket, CP electrode, etc.We have decades of experience in titanium anode manufacturing, equipped with advanced and sophisticated manufacturing equipment, and have accumulated rich experience in water treatment, chlor-alkali industry, fuel cells, electrolytic refining, and cathodic protection.In addition, our product quality has passed certifications from authoritative organizations such as BV, ISO9001, SGS, TUV, and CNAS. Choose Xubo Titanium Anode to help you improve your industrial catalytic efficiency.
titanium anode feature
Xubo Titanium Titanium Anode adopts a variety of coating systems designed to customize the coating formulation according to the operating environment, so as to design cost-effective and durable titanium anodes. In addition to powerful coating customization capabilities,Our titanium anodes also help you reduce energy consumption, improve product purity and extend service intervals. To achieve these goals, we design the anodes thoroughly in our own factory. To maximize efficiency.
- Binary, ternary, quaternary, and five-element coating system design
- High electrocatalytic performance design
- ASTM/ANSI Gr1 titanium substrate, substrate recoating
- Designed with a lifespan of 2~50 years
- Nano-scale refined grain coating, excellent bonding
- All welding parts are fish scale welding
- Customize the size and shape according to the working conditions and drawings
A wide range of titanium anode types
As a direct manufacturer, Xubo Titanium expertly engineers over 12 categories of high-performance titanium anodes. By strictly controlling every process—from titanium substrate machining to final MMO coating—we deliver highly conductive, economical, and durable electrode solutions. Whether you need a single custom prototype (MOQ: 1pc) or large-scale mass production,We have titanium anodes for electrolytic processes, electropolishing plants, and zinc acid plants, as well as electroplating plants and copper factories for a wide range of applications.
POPULAR
Ruthenium oxide titanium anode
Ruthenium oxide titanium anode integrates low chlorine precipitation overpotential, corrosion resistance, high stability, and high electrocatalytic properties, and is mainly used in chlor-alkali electrolysis, organic electrolysis, seawater electrolysis, production of acidic ionized water, and industrial wastewater treatment industries.
POPULAR
Iridium oxide titanium anode
The main characteristics of iridium oxide titanium anodes are high oxygen precipitation potential, strong electrocatalytic ability, corrosion resistance, long life and other characteristics, which are developed for non-ferrous metal electrolytic production, metal foil manufacturing,Electrolytic extraction and recovery of non-ferrous metals, etching solution recovery of copper, electroplating, organic electrosynthesis, cathodic protection, electrodialysis and other industries
POPULAR
platinized titanium anode
The main characteristics of platinized titanium anodes are low hydrogen evolution reaction overpotential, lightweight, no pollution, high dimensional stability and bearing capacity, low cost, easy maintenance, and are developed for electroplating, reagents, and perchlorate production.
POPULAR
lead dioxide anode
Lead dioxide titanium anode is developed for electrolytic refining and metal refining due to its low cost, improving the quality of cathode products, eliminating lead sludge and saving energy.
POPULAR
Titanium-clad copper rod
Titanium-clad copper is mainly used in hydrometallurgy, electroplating and electrolysis because of its low processing cost, good conductivity, corrosion resistance, and good weldability.
POPULAR

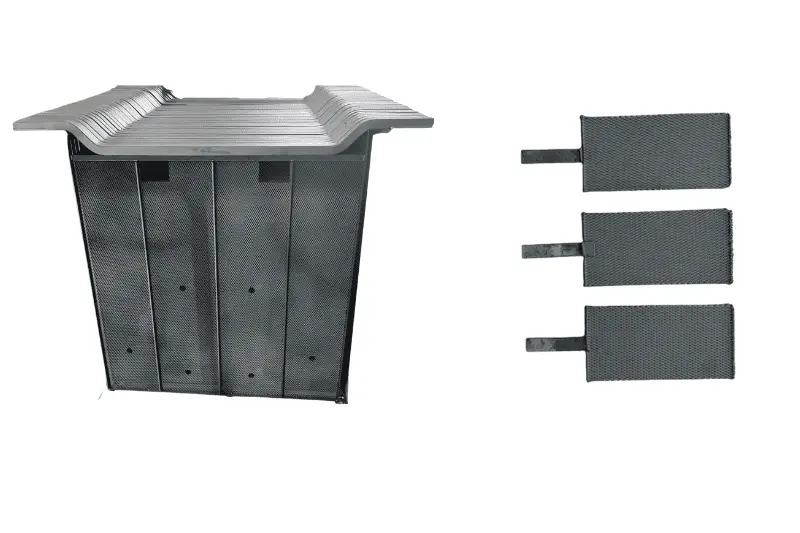

titanium basket
Titanium baskets are developed and used in the electroplating industry due to their high strength, light weight, low voltage loss, durability, and high anode efficiency.
POPULAR
Cathodic protection anode
Cathodic protection anodes are characterized by their long service life, light weight, strong electrical conductivity and environmental protection characteristics is engineered for Pipeline protection and Bridge Substructure
POPULAR
Electroplating anode
Electroplated anode is characterized by no pollution, reduced energy consumption, high electrocatalytic activity,develpoed to automotive Industry and printed circuit board (PCB) plating.
POPULAR
ICCP anode
ICCP anode is used for its low corrosion rate, low maintenance, and high mechanical strength is targeted at marine engineering and Construction and Infrastructure
POPULAR
Cathodic protection cable
Cathodic protection cables are known for their excellent resistance to chemicals, moisture, abrasion, and UV rays， is optimized for Pipelines, storage tanks,Ships and vessels and Marine structures
POPULAR
Water treatment anode
Water treatment anodes operate efficiently under specific operating conditions due to their corrosion resistance, strong electrocatalytic activity, and long life used in Residential water treatment, sewage treatment and pharmaceutical wastewater treatment
POPULAR
PEM electrolyzer
PEM electrolyzers are known for their compact design, high energy efficiency, and high purity hydrogen output are used in green hydrogen production and energy storage.
custom manufacturing titanium electrode on demand
For a variety of special or unusual applications, wheelless electrochemical cells or devices, process conditions (e.g. electrolyte composition, temperature, current density, design life, etc.), mechanical load of the anode, and conductivity of the anode, Xubo Titanium has R&D technology and lean production capabilities.Tailor-made solutions to your needs. From minor improvements to new designs, Xubo Titanium has created a superior number of corrosion-resistant and highly conductive titanium electrodes that far exceed those of other competitors.we also support Customization / OEM / Low MOQ for trial orders. Contact us to discuss your needs.
What is titanium anode?

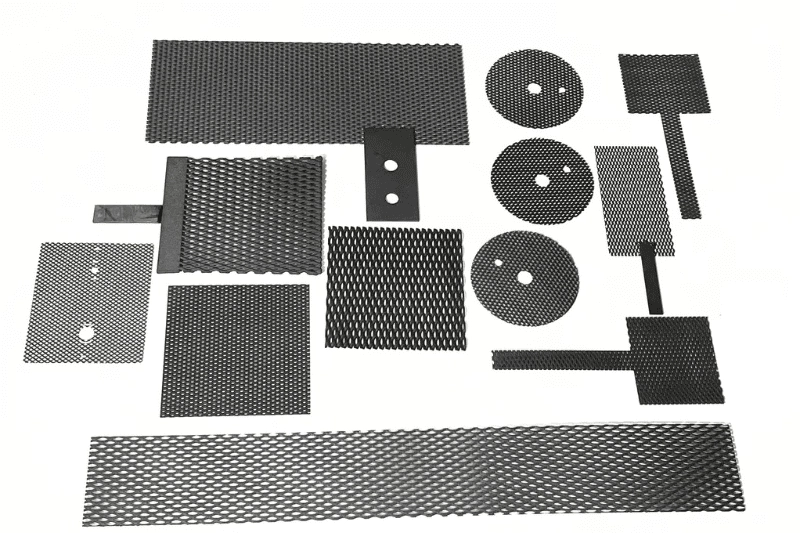

The titanium anode is composed of a Gr1 titanium substrate (such as sheets, mesh, wires, rods, strips, plates, tubes, or other combinations) and a precious metal oxide coating (such as ruthenium, iridium, platinum, rhodium, and tantalum and other combinations of different elements).
Sizes range from a few square centimeters to several square meters. It is a core component of industrial electrochemical process corrosion, energy consumption, efficiency and environmental protection.
With its leading coating technology, precise processing equipment, and deep understanding of the industry in the fields of water treatment, electrolytic refining, and electroplating, Xubo Titanium custom-designs high-performance, flexible, and long-life DSA electrodes for global customers. Customized factory degree.
what are platinum coated titanium anode used?
Ruthenium series titanium anodes
The ruthenium series titanium anodes is coated with pure ruthenium, ruthenium iridium, ternary ruthenium iridium, multi-component ruthenium iridium mixed oxide formula on the surface of the titanium substrate, which has corrosion resistance and stability.Suitable for: hydrochloric acid, electrolyzed seawater, electrolyzed brine environment. Meet the durability requirements of your harsh environments with fewer maintenance costs and reduced risk of production disruptions.
Applications: Electrolytic descaling of circulating water, cathodic protection, on-site sodium hypochlorite production, on-site chlorine dioxide production, fruit and vegetable disinfection, etc.
Iridium series titanium anodes
Iridium series titanium anodes is coated with iridium oxide, iridium tantalum, platinum iridium, ternary iridium tantalum, multi-component iridium tantalum mixed oxide formula coating on the surface of the titanium substrate, which has electrocurrent, insoluble and electrocatalytic activity, and is suitable for sulfuric acid environment.It meets your long-term use of anodes in a variety of harsh electrolytic environments, and is not easy to be corroded or dissolved.
Applications: electroplating, wastewater treatment, cathodic protection, and printed circuit board manufacturing.
Platinum series titanium anodes
The Platinum series titanium anodes uses a sintering process to evenly apply pure platinum or platinum-iridium alloy coating on the surface of the substrate (GR1/GR2, Nb1/Nb2), which can meet your needs for a thick platinum layer, achieve high-purity coating requirements, and reduce the number of equipment maintenance.
Applications: Chlorine and oxygen evolution environments, electrolytic chlorine plants, breweries, paper mills, reagents, perchlorate production, chlorate production, electroforming (microstructure, hollow jewelry, dentistry), electrolytic refining (cobalt ore, nickel ore, copper ore),Electroplating (precious and non-precious metals), electrochemical synthesis, electrooxidation, detoxification, electronics and semiconductor industry, chemical process engineering.
Lead dioxide titanium anode
Lead dioxide titanium anode is a DSA electrode with a titanium matrix composite interlayer bound to α-PbO₂+β-PbO₂ active layer. In the field of electrolytic refining, the service life is 28~52 months longer than that of traditional lead anodes, reducing energy costs, improving the quality of copper cathodes, and reducing manual labor.Create a healthy working environment for efficient mining and process sustainability.
Applications: Hydrometallurgy, wastewater treatment, electroplating industry.
Advantages of titanium electrode
It provides corrosion resistance in corrosive environments such as strong acids, strong alkalis, and high salts, helping you save the cost of anode procurement.
the coating on the surface of the substrate can reduce the overpotential of oxygen evolution and chlorine evolution,help you increase your productivity。
he electrolytic interpole spacing remains unchanged, ensuring that the tank voltage is stable and ensuring that you improve production stability.
Titanium anode can carry high current and low voltage can help you increase production capacity and reduce energy consumption.
the coating has strong adhesion and is insoluble in electrolyte. Help you produce high-purity, high-quality electrodeposition products.
TURN YOUR PROJECT INTO REALITY
From custom blueprint design to the final MMO coating, Xubo Anode is your direct manufacturing partner in China. We engineer high-performance, long-lasting titanium anodes tailored to your exact electrochemical applications—delivering superior quality without the middleman markup.
Superior Craftsmanship
We use high-purity titanium materials and precision electroplating processes to provide you with anodes that are corrosion-resistant, have strong adhesion, and offer a long service life.
Customization on Demand
With our own R&D laboratory and experienced staff, we can customize electrodes to meet your specific application needs.
Directly from the source
Our factory-direct sales model eliminates intermediaries and markups, minimizing your procurement costs.
Fast Delivery
Our high-quality raw material suppliers and four efficient production lines ensure fast delivery and provide comprehensive technical support.
Ready to start making custom titanium electrode parts?
Coating Selection & Performance Matrix
The following table outlines the key operating parameters and material properties of Xubo Anode’s Ti/PbO2 electrodes. Designed for high oxygen evolution potential and harsh environments, our anodes are optimized for organic wastewater treatment and hydrometallurgy.
| Coating Type | Primary Catalytic Reaction | Max Operating Current Density | Working Environment & pH Range | Typical Applications | Coating Thickness |
| Ru-Ir MMO (Ruthenium-Iridium) | Chlorine Evolution | < 800 A/m² | High chloride environments (pH 1-12) | Chlor-alkali industry, Sodium hypochlorite generators, Pool water disinfection, Ballast water treatment | 2 – 20 µm (Customizable) |
| Ir-Ta MMO (Iridium-Tantalum) | Oxygen Evolution | < 2500 A/m² | Strong acid, sulfate-rich environments (pH 0-14) | Copper foil production, Electrowinning (Zn/Cu/Ni), Cathodic Protection (CP) | 2 – 20 µm (Customizable) |
| Platinized (Platinum Coated) | Oxygen & Chlorine Evolution | < 10,000 A/m² | Complex electrolytes requiring extreme high purity | Precious metal electroplating (Au/Ag), Hard chrome plating, Water ionizers | 0.5 – 10 µm |
| PbO2 (Lead Dioxide) | Oxygen Evolution | < 1,000 A/m² | Strong acidic and highly corrosive environments | Advanced wastewater treatment (COD degradation), Hydrometallurgy, Organic electrosynthesis | 1～2mm |
📄 Download Technical Datasheet (PDF)
Not sure which MMO coating is the right fit for your project? [Click here to consult our Xubo electrochemistry engineers for free!]
Substrate Specifications & Xubo Manufacturing Capabilities
At Xubo, we engineer our titanium anodes to meet the exact specifications of your electrochemical applications. Below is our comprehensive technical and selection guide to help you find the perfect match.
| Specification Parameter | Details & Range | Xubo Manufacturing Advantages |
| Base Substrate | Grade 1 / Grade 2 Pure Titanium | Strictly complies with ASTM B265 / ASTM B348 international standards. |
| Available Shapes | Mesh, Plate/Sheet, Tube, Rod, Wire, Ribbon | Capable of processing complex 3D geometries and custom CNC machining from your blueprints (OEM/ODM). |
| Dimensions & Tolerances | Length/Width: Customized to request Thickness: 0.5mm – 10mm (Standard) | Utilizing high-precision CNC machining to ensure strict tolerances within ±0.1mm. |
| Surface Preparation | Sandblasting, Acid Etching。Sintering, electroplating | Ensures ultimate adhesion between the titanium substrate and MMO coating, preventing coating peel-off. |
| Expected Lifespan | 1 to 20+ Years (Depending on operating conditions) | We provide lifespan estimations and accelerated life test reports based on your specific application. |
| B2B Sourcing Services | MOQ: 1 PC (Sample orders supported) | Support laser marking (Your Logo), customized secure packaging, and white-background images for distributors. |
Trusted around the world FOR AWESOME PROJECT

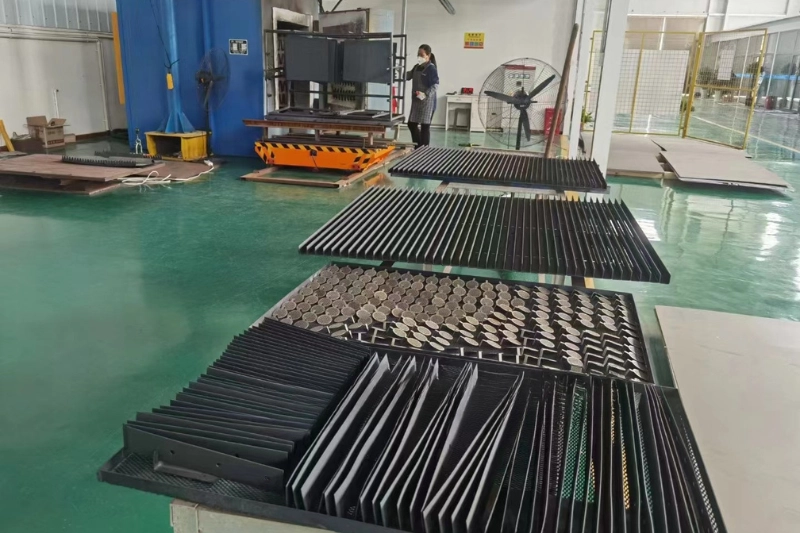

Our factory operates continuously every day, enabling us to meet customer demands for customized titanium anode coatings and specifications on schedule. Our technicians are industry experts with around 20 years of experience, and we take pride in providing customers with high-quality, high-standard, and cost-effective tailored titanium anodes. Customer satisfaction is at the core of our operations, and we produce strictly according to the drawings and requirements provided by our customers. Our staff fully understands the importance of delivery time; once an order is confirmed, it will certainly be completed as promised.
Frequently Asked Questions
A: Yes, Xubo Titanium is optimized for specific wastewater components, the chlorine evolution potential of the ruthenium iridium anode is 1.13V, and the oxygen evolution potential of the iridium-tantalum anode is 1.5V.
The coating has a large area of peeling, the surface is seriously worn, and the anode voltage increases by more than 10% compared with the initial state.
The titanium substrate is made of GR1 pure titanium, which has a high titanium content and stronger corrosion resistance. The roughness of the surface blasting is controlled at Ra 3-5μm.
This is what I will definitely do to ensure performance. Before each shipment is shipped, we will attach a flaw detection report.
Of course, it is acceptable. We have high-precision substrate processing equipment. When < 10mm pole spacing, gradient coating is required.
We have thickness tester, each product will be probed. Yes, XRD maps are available on a chip-by-chip basis, with electrochemical performance reports included in batches.
Titanium substrate pre-oxidation treatment (to generate Ti₄O₇ transition layer), when SS> is 200mg/L, SiC wear-resistant particles are mixed in the coating, and the cathodic protection potential is configured to prevent reverse current
OEM & CUSTOMIZATION
PARTNER WITH A RELIABLE ANODE MANUFACTURER
Upgrade your supply chain with a trusted China manufacturer. We offer flexible OEM/ODM services, precise CNC machining, and low MOQs for trial orders. Whether you are a distributor looking for reliable stock or a facility upgrading your electrowinning cells, we’ve got you covered.
Let’s build a profitable partnership. Submit your inquiry today to get our latest product catalog, distributor pricing, or to request a custom sample.
