Quality Assurance

We implement a robust quality control system that covers the entire titanium anode raw material and production process. Our goal is to provide our customers with the most durable titanium anodes.

Our quality standards include inspecting chemicals at every stage of production, verifying equipment accuracy, and using electrochemical testing equipment to test anode durability and dimensional accuracy.

Our titanium anodes are ISO, SGS, BV, and TUV certified, and we adhere to these standards throughout the entire production process to ensure product consistency. Please feel free to contact me for more information on our comprehensive quality control process.

ISO

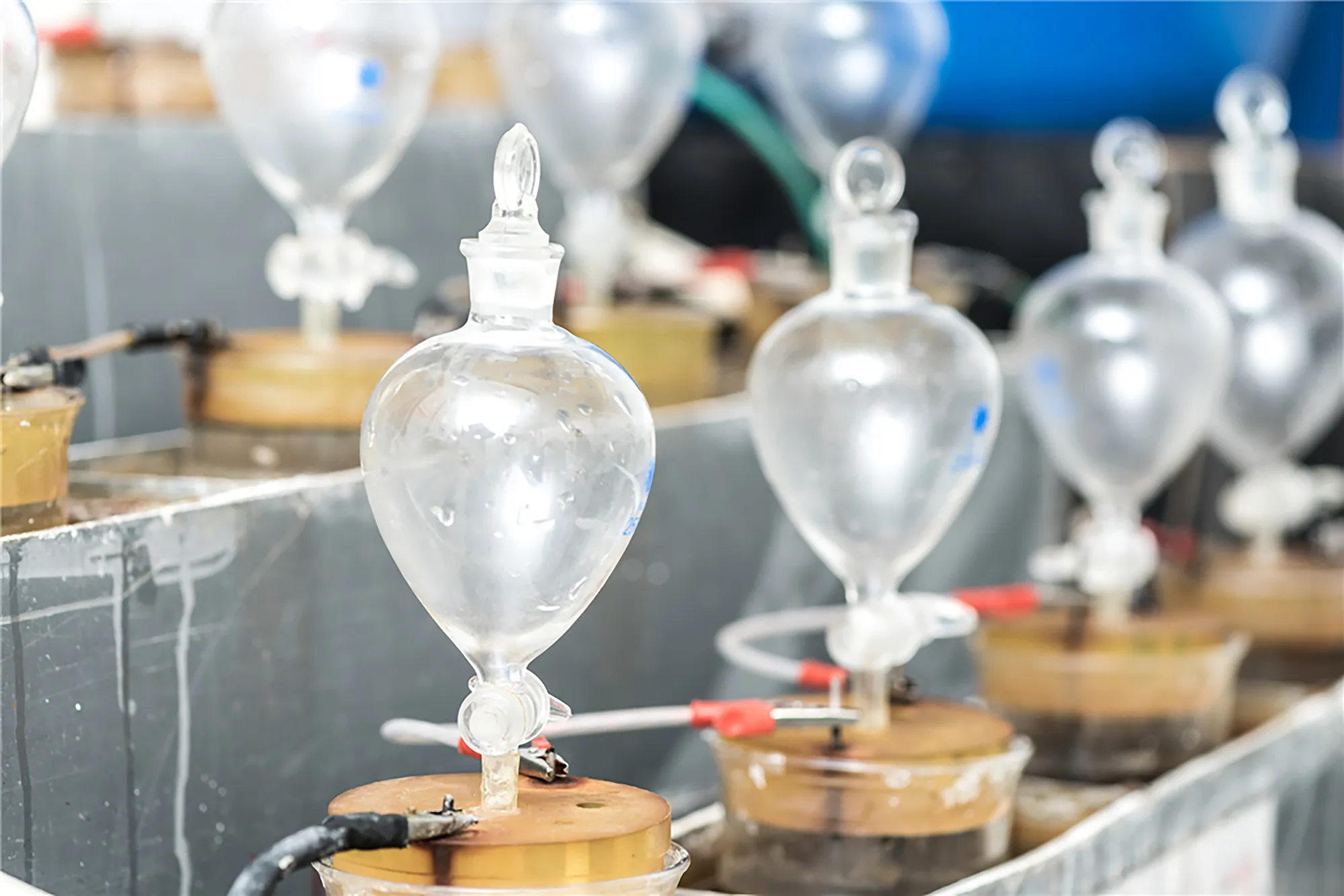

MMO anode life accelerated test

MMO anode life accelerated test

Titanium Anode Production process

525titanium mesh
Titanium mesh

We use high-purity GR1 titanium plates to stamp into titanium mesh, giving customers longer durability

Thermal annealing furnace
annealing

Own equipment, full control of annealing temperature and annealing market, to ensure the dimensional stability of the substrate and avoid subsequent deformation

Xuboti Multi-roller leveling machine
Leveling

Achieve high-precision and smooth appearance on the basis of stable substrate, thereby increasing the service life of precious metal coating by 50%~200%

未命名的设计_(4)
Shape processing

We use high-precision laser cutting machines to cut titanium substrates, giving customers a better assembly experience.

sandblasting
annealing

We use finer grain brown corundum sand blasting to make the coating and substrate bond more tightly.

Pickling
annealing

Create an ideal “base bed” for the “coating” that is super clean, rich in microscopic three-dimensional texture, and full of reactivity

Solution preparation
Solution preparation

High purity ≥99.9% precious metal raw materials, in accordance with precise proportions and strict adherence to scientific liquid preparation procedures, to produce industrial titanium anodes that can withstand high currents

Brush coating

Workers use acid- and alkali-resistant nylon bristle brushes without loose hairs. The painting techniques are strictly evaluated. Every painting is a fusion of art and precision engineering.

sintering
sintering

The core challenge of sintering titanium anode coatings is to prevent oxidation/contamination. Precise control of temperature and time is a key step in achieving active coating and final electrode performance.

Xubo electroplating tank
electroplating

Achieve precise control of plating solution composition + impurity monitoring, stable real-time control of current density in electroplating, and successfully produce high-quality lead dioxide titanium anodes

Welding
Welding

The coating area is absolutely isolated, the welding temperature and current are strictly controlled, and the welders are specially trained to ensure the integrity of the coating.

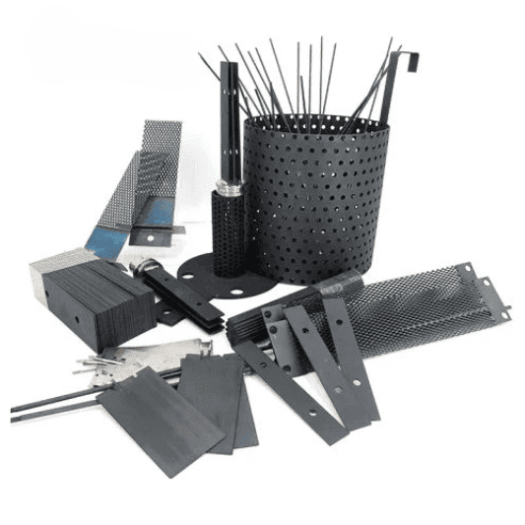

mmo andoe 800
MMO TITANIUM ANODE

We customize MMO titanium anodes in various sizes, coating thicknesses (6-20μm), precious metal ratios, and service lives (2-50 years).

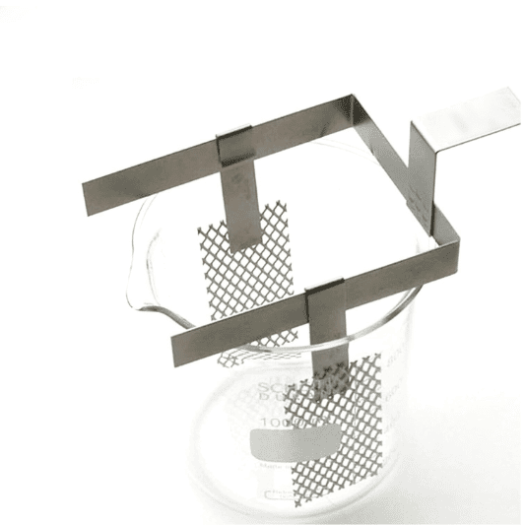

pla anode 800
Platinized titanium anode

We can customize platinum-coated titanium anodes in various sizes and coating thicknesses (0.2~10μm).

500 lead dioxide anode
lead dioxide titanium anodes

We customize lead dioxide titanium anodes in various sizes and coating thicknesses (0.8~4mm).

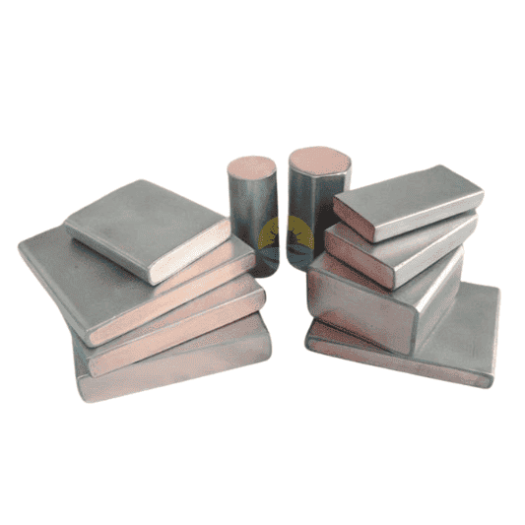

Titanium clad copper800
Titanium clad copper

We customize titanium-clad copper conductive products in various sizes and shapes.

Testing titanium anode parameters to ensure quality

PMI-Inspection
PMI Inspection
Chemical-Tesing
Raw material composition testing
size inspection
inspection
Coating-Thickness-testing
Substrate thickness detection
Preparation-Solution
Metallographic testing
coating thickenss test
Coating thickness detection
未命名的设计 (64)
Microstructure inspection
钛阳极检测3
Current efficiency detection
Product Quality Inspection
Chlorine evolution effect test
MMO anode life accelerated test
Enhanced life testing

XUBO titanium's quality policy

Prioritizing Customer Satisfaction

We always prioritize customer needs and expectations, striving to provide zero-defect, highly reliable titanium anodes and become a trusted, long-term partner.

Continuous Innovation

We are focused on continuously improving the catalytic activity, stability, and service life of titanium anode coatings. This maximizes production efficiency and economic benefits for our customers.

Precise Customization

We provide precise and efficient customized solutions and adhere to contractual commitments, ensuring timely, sufficient, and safe delivery of high-quality products to customers worldwide.

Total Employee Involvement

We continuously improve product quality through systematic training, clear processes, and effective communication, motivating all employees to focus on product quality.
